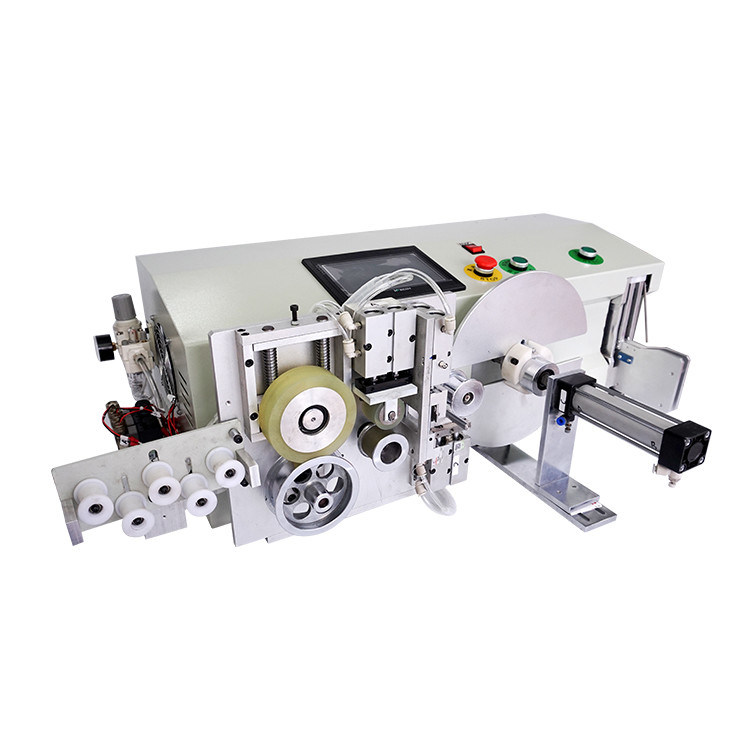

Cable Coiling And Binding Machine with Counting And Cutting Feature

China Cable Coiling And Binding Machine with Counting And Cutting Feature supplier
Cable Coiling And Binding Machine with Counting And Cutting Feature supplier

Large Image :  Cable Coiling And Binding Machine with Counting And Cutting Feature

Product Details:

Place of Origin: China
Brand Name: RKNES
Model Number: RS-1009

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden case
Delivery Time: 5-7 days
Payment Terms: T/T
Contact Now
Detailed Product Description
Name: Cable Coiling And Binding Machine With Counting And Cutting Feature

Automatic Cable Counting Cutting Winding And Binding Machine

Intro:

The is an automatic machine for cable winding and binding. Also it can count and cut cables to required length, then wind and bind it automatically. Works for long cables winding and binding, such as 5 meters, 10meters, 30 meters. It is programmable, the winding circles, cable length, tie length can be set as per needs.

Suitable:

This cable winding binding machine can work for AC power cord, DC power cord, USB cable, video cable,high-definition cable.
The tie should be plastic tie with iron wire inside. Max 4MM width
Wind diameter can be customized, such as 200mm, 250mm, 300mm
Max binding diameter: 45MM

Parameter:

Model No.
RS-1009
Winding cycle
1-999 cycle
winding speed
1-4 cycle/s
Winding ID
Can be customized
Winding OD
Can be customized
Avaliable wire width
10-70mm
Suitable wire shape
Round wire, flat/ribbon wire, 2 pin double, etc
Binding diameter
5-28mm/15-45mm




Suitable cable tie length




75-135mm/120-180mm
Cable tie twist cycle
2-8cycle
Diamension
940*500*500mm
Net weight
84KG
Power
AC220V 50hz/110v 60HZ
Power Rating
Max 1000W
Wire order
Unordered


Features:

1. Can count, cut, wind and bind cables. It can wind cables in good order.
2. Programmable, can set winding circles, cable length, tie length and other parameters easily.
3. We can customize the round winding disk and binding mouth as per winding diameter and binding diameter.
4. Full autoamtic machine, fast count and wind cables.
5. Easy to use, high efficiency.



Cable Coiling And Binding Machine with Counting And Cutting Feature
