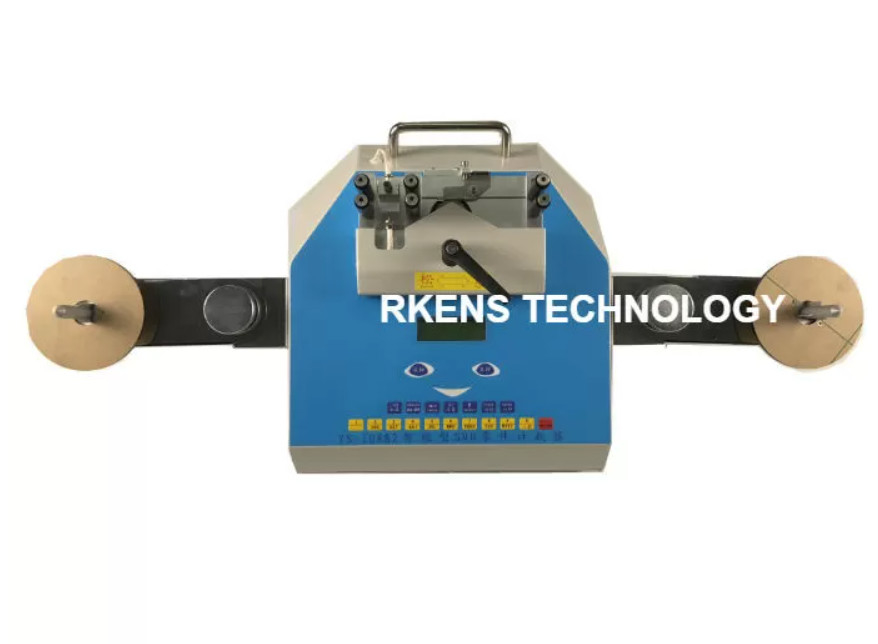

RS-IH882 80W Protable Automatic SMD Parts Counter With Missing Parts Detection Feature
  • RS-IH882 80W Protable Automatic SMD Parts Counter With Missing Parts Detection Feature

RS-IH882 80W Protable Automatic SMD Parts Counter With Missing Parts Detection Feature

Place of Origin China
Brand Name RKENS
Certification CE
Model Number RS-IH882
Product Details
Name:
Automatic SMD Parts Counter
Usage:
Count Tape&reel Smd Components
Type:
Automatic Intelligent
Detect Missing Parts:
Yes
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Carton box or Wooden case
Delivery Time
3-5 days
Payment Terms
T/T, Paypal,Western Union
Product Description

Intelligent Missing Parts Detection SMD Parts Counter With Optical Fiber Sensor RS-IH882



Intro:

RS-IH882 is an intelligent type SMD parts counter with fiber sensor for detecting empty components. It is based on photoelectric sensor principle, using the components leading hole and components corresponding relationships. The SMD counter can count SMD parts accurately and fast. It can stop automatically after counting without pressing “Stop” button.

Suitable:



  • Intelligent SMD parts counter, much faster and more accurate
  • SMD counter is suitable for SMD material belt type components
  • For All size of reel diameter
  • Tape pitch: 2,4,8,10,12,16,24,32,44,56mm
  • Tape width: 8,12,16,24,32,44,56mm



Specification:



Name RS-IH882 SMD Counting Machine
voltage AC110V/220V, 50/60Hz(convertible)
Detect Missing Parts Yes



Capability

5000 pcs /15s
Power 80w
Counting volume -16 777 216~ 16 777 216
Size L490*W280*H280mm
Net Weight 11kg
Reel Diameter Suitable for SMD Reel of any diameter
Reel Interval Distance 2,4,8,10,12,16,24,32,44,56mm
Reel Width 8,12,16,24,32,44,56mm





Features:

1. Intelligent SMD parts counter for fast and accurately counting SMT components

2. Optical fiber sensor for empty pocket check, can detect missing parts

3. LCD dipaly, can set quantity, counting direction and other parameters easily

4. SMD counter is suitable for all types of SMD tape and reel components

5. Optional bar code printer and scanner. Bar code printer can be customized.

6. Small size, protable machine. Easy operation.



Intelligent & Traditional SMD counter Comparation



Intelligent & Traditional Comparison RS-801/802 traditional smd counter RS-IH1881/1882 intelligent counter
Stop automatically when finish No, manual stop YES
Cushion NO YES
Voice Reminding NO YES
Error 0 0
Overswing Nearly no Absolutely no
Power 30w 80w
Speed 30s for 5000pcs tape 15s for 5000pcs tape
Speed adjustable 3 level 8 level
Noise low low
Outlook Rectangle,stand to operate 45‘ stand,sit or stand to operate
Scope -99999-99999 -16777216-16777216
Connector printer YES YES
Connector scanner YES YES
