|Name:||Automatic Screw Machine With Double Working Platform Screw Tightening Machine||Screw Size:||M2-M6|
|Usage:||Feed And Tighten Screws||Voltage:||220V/110V|

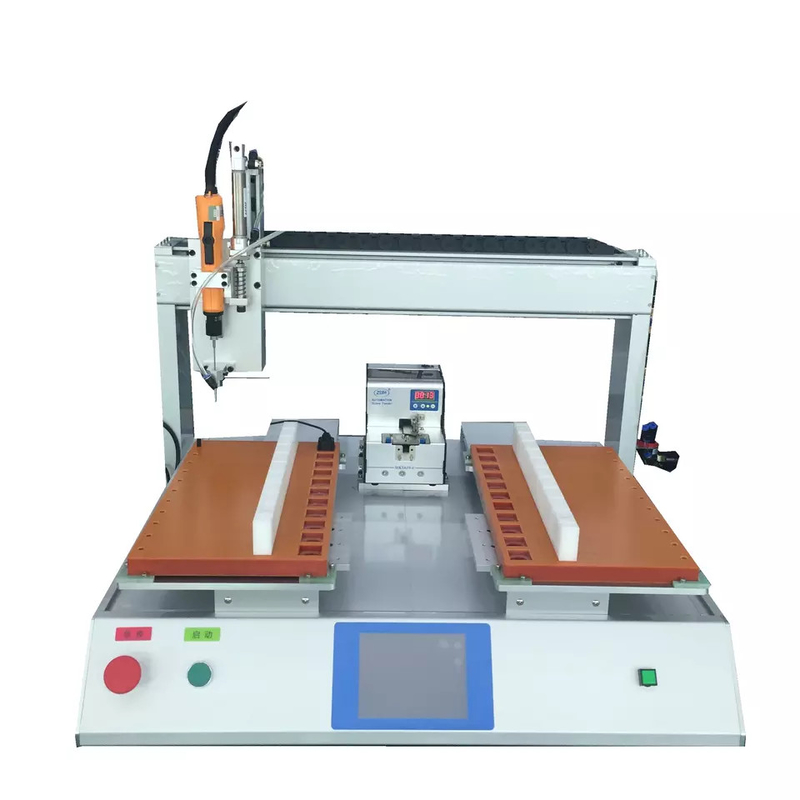

YS-L401-2E is an automatic screw tightening machine with 2 working tables. With screws presenter, it use pick-place screws feeding type.
Suitable for all types of screws the total length of the screw should be greater than 1.3 times the diameter of the nut. Screws
with a total length of no more than 40mm can be fitted with removable gaskets.
|Working Size||200(x)*400(Y)*100(Z) * 2 Working table|
|Import method of screw||Air-blowing type|
|Capacity of screw pocket||8000 pcs|
|Scope of application||M1 - M6|
|Suitable screw head||Any universal type|
1,High efficiency, the blowing screw directly sends the screw to the batch nozzle, saving the time of taking the screw back and
forth, and the efficiency is higher and more stable.
2,Reduce the labor intensity of workers. Workers only need to pick and place the product and the machine can automatically
complete the screwing, which greatly reduces the labor intensity.
3,Simple operation. The display screen can be operated visually, and the staff can quickly grasp the operation and debugging. One
worker can manage several machines at the same time.
4,Improve product quality: accurate torque, convenient adjustment, and guarantee the quality of locking.
5. Stable performance, with leakage detection function, it will appear that individual screws have not been blown into place at a time, and can continue to blow or alarm processing to reduce product leakage of screws and increase product qualification rate.
