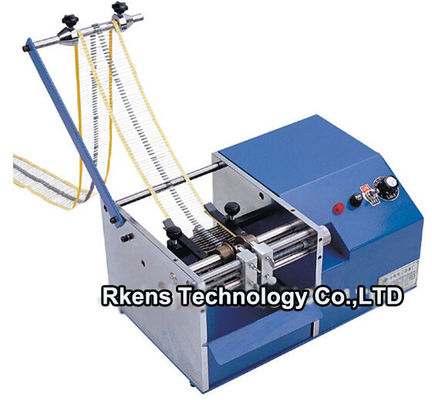

|Name:||Factory Supply Resistor Cutting Forming Machine||Usage:||Cut Lead, Bend Lead|
|Axial Lead Size:||0.35-0.8mm||Suitable For:||Taped Resistor,diode And Other Axial Components|
This axial lead forming machine is for taped radial components only. It can cut and form taped axial components with 0.35-0.8MM lead diameter. It can meet different forming requirements, such as cutting only, or cutting and forming. The forming tool is customized according to cutomers' forming need, including U shape and F shape forming tool. U shape and F shape can not share same machine.
|Model||RS-904 220V/110V Motorized Resistor / Diode Lead Cutting Forming Machine|
|Power||220V /110V 50HZ/60HZ|
1.forming machine is mainly used for axial type braid resistor, capacitor, inductor, diode and other electronic components foot cutting and forming into U or F type assembly.
2.Cutting blades is imported SKD -11 professional steel tools. It's sharp and durable. SKD - 11 steel is the most well known in the industry.
3.The applicable roll,boxed materials.
4.Small size,cut size precisely,suitable for short feet operation.
5.Optional electric modules, consisting of electric resistor lead forming machine
1. This machine is suitable for axial taperesistors and electronic components forming and cutting feet;
2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;
3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;
4. Forming span and feet length are adjustable;
5. Using tools imported from Japan, durable;
6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.
