YS-160W Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade
  • YS-160W Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade
  • YS-160W Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade

YS-160W Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade

Place of Origin China
Brand Name RKENS
Model Number YS-160/YS-160W
Product Details
Name:
Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade
Usage:
Cut Shrink Sleeve, Poly Tubes,etc
Blade Length:
160mm
Cut Length:
1-9999MM
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Carton box or Wooden case
Delivery Time
3-5 days
Payment Terms
T/T, Paypal,Western Union
Supply Ability
300 SETS Per Month
Product Description

Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade

Intro:

RKENS YS-160 or YS-160W is a tube sleeve cutting machine with 160mm blade. We have many models of automatic poly tubing cutting machine with 100-500MM blade. The smaller machine YS-100 is for tubing within 100MM, and YS-500W for max 500mm wide poly tubing. If you need, we can also one end cutting, and another end seaing for bag making.



YS-160 is a small power machine.
YS-160W is bigger power machine . It has bigger motor and drive.

Both machine has 160mm long blade.



Features
1.Full Automatic:  Automatic feeding and cutting. Set Length and QTY, machine works automatically.
2.User Friendly: English panel,Software and Manual ,easy operation.
3.Fast speed: it can cut 100-120cuts/minute(Length=50mm). Adjustable speed
4. High accuracy:Cut-length is accurate controlled by stepping motors
5.Blade type: Cold or Hot cut. Hot blade cut for nylon/polyester/braided webbing, avoid fraying.
6. Automatic stop: It stops automatically if materials run out during operation.
7. Multiple usage: Suitable for cutting soft tubes, like flexible pvc tube, rubber/silicone tube,shrink tube,etc. Also it can cut ribbon cable,copper wire,shrink sleeve, PV ribbon, Tabing Ribbon, nickel strip, Copper velcro,elastic, strap,etc.

Parameters




Name Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade
Model YS-160 /YS-160W
Power Supply 220V/110V 50HZ/60HZ
Blade length 160MM
Cut length 0.1-9999MM
Speed 100-120 cuts/minute
Weight 35KG Packed by carton case
Size 57x43x50CM
Language English

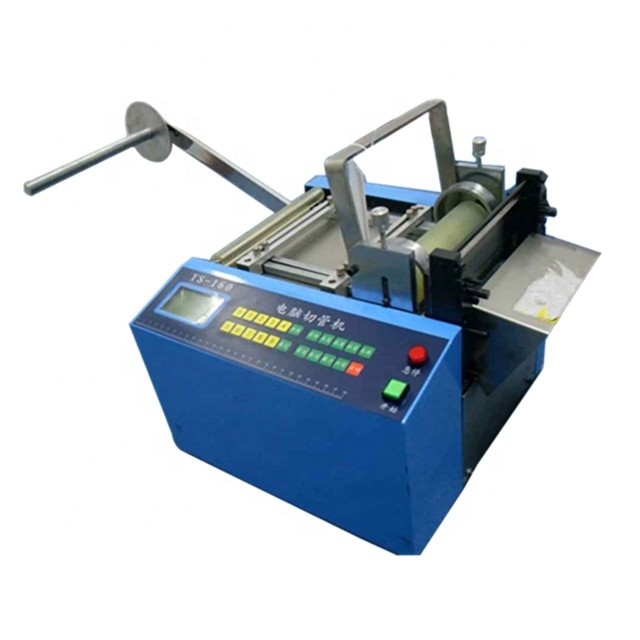

Pictures of Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade



YS-100WH for cutting flexible tubes less than 25M OD
YS-160W Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade 0


YS-100 For Cutting Flexible tubes less than 12MM diameter
tube cutter machine

cutter for pvc tubes

Machine is packed carton box or wooden case for safe shipping
YS-160W Auto Shrink Sleeve Poly Tubing Cutting Machine With 160MM Blade 3

Questions&Answers

Yes, it is an automatic cutting machine. You just need to set cut length and cut numbers, it will cut automatically.

2. What about the language of the panel and user manual?
The panel, munual and software will be all in English. So people around the world can use it conveniently.

3. What about the warranty?
The warranty is 3 years. We provide life-long service. Whenever you need help, just contact us.

4.What about the lead time?
We will machines in stock, we can ship the machine within 1-2 days after getting your payment.
