Intro:

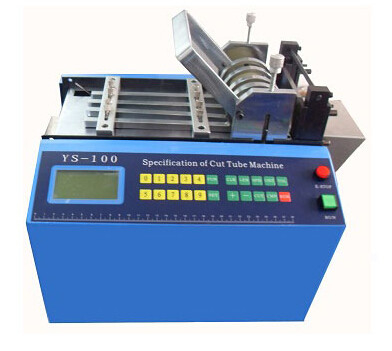

YS-100W auto tube cutter is for cutting various soft tubes, silicone rubber hoses, pvc tubings, shrink tubes, etc. Operator just need to set cut length, quantity, machine will automatically cut and stop.
Usage:
It can tubes (like pvc tubes, heat shrink tubes, fiberglass tubes, rubber tubes), tapes(like velcro, nylon and plastic zipper, nickel strip, elastic), paper(like insulation paper, plastic film), wire and cables, etc. Our machine can meet different cutting needs.
Features
1.Full Automatic: Automatic feeding and cutting. Set Length and QTY, machine works automatically.
2.User Friendly: English panel,Software and Manual ,easy operation.
3.Fast speed: it can cut 100-120cuts/minute(Length=50mm). Adjustable speed
4. High accuracy:Cut-length is accurate controlled by stepping motors
5.Blade type: Cold or Hot cut. Hot blade cut for nylon/polyester/braided webbing, avoid fraying.
6. Automatic stop: It stops automatically if materials run out during operation.
7. Multiple usage: Suitable for cutting soft tubes, like flexible pvc tube, rubber/silicone tube,shrink tube,etc. Also it can cut ribbon cable,copper wire,shrink sleeve, PV ribbon, Tabing Ribbon, nickel strip, Copper velcro,elastic, strap,etc.
Parameters
Name | Automatic Rubber Hose Cutting Machine |
Model | YS-100W |
Power Supply | 220V/110V 50HZ/60HZ |
Blade length | 100MM |
Cut length | 0.1-9999MM |
Speed | 100-120 cuts/minute(50mm length) |
Weight | 28KG carton box |
Size | 56x48x53CM |
Language | English |
Questions&Answers
1. Is it an automatic machine?
Yes, it is an automatic cutting machine. You just need to set cut length and cut numbers, it will cut automatically.
2. What about the language of the panel and user manual?
The panel, munual and software will be all in English. So people around the world can use it conveniently.
3. What about the warranty?
The warranty is 3 years. We provide life-long service. Whenever you need help, just contact us.
4.What about the lead time?
We will machines in stock, we can ship the machine within 1-2 days after getting your payment.
YS-100W is for cutting tubes within 13mm OD
YS-100WH is For Cutting Flexible tubes less than25MM diameter
