Automatic Wire Twister& Wire Twisting Machines and Equipment

China Automatic Wire Twister& Wire Twisting Machines and Equipment supplier
Automatic Wire Twister& Wire Twisting Machines and Equipment supplier

Large Image :  Automatic Wire Twister& Wire Twisting Machines and Equipment

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-J100

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Carton box or Wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, Paypal,Western Union
Contact Now
Detailed Product Description
Name: Automatic Wire Twister, Wire Twisting Machine Usage: Twist Wires Together

Automatic Wire Twister, Wire Twisting Machine



Intro:

Twist wires together fast and accurately, twisted effect like the flowing picture

  • Application: simple twisting processes with middle quality
  • Wire-fixtures with special snap hook and freely selectable holding device. (Holding device is not included.)
  • Forward and backward running are switchable.
  • Freely adjustable rotation speeds.
  • Freely adjustable twist cycles.

Suitable:

1. Specially used for electronic wire twisting, with uniform output and stable quality. 1-5 groups of electronic wires can be twisted at the same time. 2. The twisting speed and time can be adjusted according to customer requirements, and the forward and reverse rotation can be set. 3. The number of twisted wires is counted by itself. The operation is simple and not easy to malfunction.



Twisting Samples

Automatic Wire Twister& Wire Twisting Machines and Equipment Automatic Wire Twister& Wire Twisting Machines and Equipment



Parameters



Model RS-01 single clipper RS-02 two clipper RS-05 five clipper RS-01A auto clipper
Voltage AC220V/110V AC220V/110V AC220V/110V AC220V/110V
Power 90W 90W 120W 90W
Speed 5000R 4000R 2000R 4500R
Weight 8KG 10KG 11KG 10KG
Size 270x220x290mm 270x220x290mm 270x220x290mm 270x220x290mm



Features:
1.Advanced LCD+Backlit display mode.
2.Motor directly out of the shaft and no transmission torque loss.
3.
Adopted the advanced electronic control braking mode,Zero-maintenance,no carbonate, electromagnetic brake, belt and so on mechanical wear and tear
4.Trouble-free working for more than 20000 h, with perfect industrial protection circuit design
5.Good saving for setting data, data can be saved permanently..
6.Can Set winding directions for different sections separately. Positive and negtive counting function.

7.Can Set winding speed for different sections separately. Low noise, high torque at low speed constant.
8.Quick start, high speed,can brake at high speed, high efficiency. 0-9 slow start speed is selectable. Can set different slow start speed for different sections.
9.After winding, has functions of output statistics, the number of tips, automatic into the period.
10. Control system can be set as per needs.

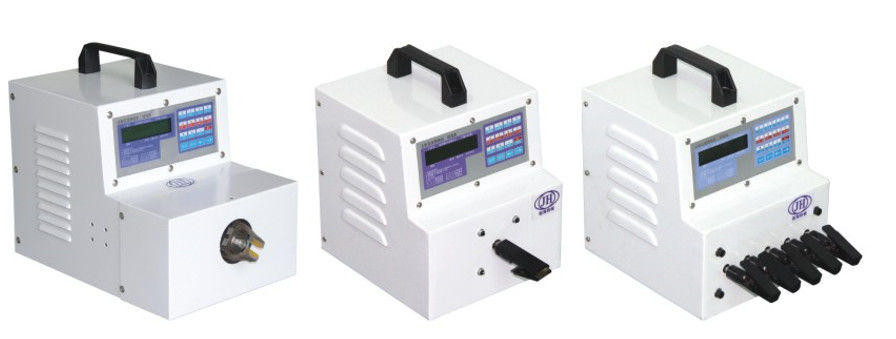

Picures of wire twister twisting machine



Automatic Wire Twister& Wire Twisting Machines and Equipment
