The machine is a simple manual type pin headers cutter. Pin header cutter is suitable for 1.27mm pitch, 2.0mm pitch, and 2.54mm pitch pin headers. No matter you pin headers has 1-row, 2-row, 3-row, L shape, or straight shape, the machine can cut it.
Note: For 2.54, 2.0 and 1.27 pitch pin headers, you can use different machines. Or change cutting die.
For different pin numbers cutting, operator can adjust washers and blades.
Suitable:
Pin headers with 2.54mm 2.0 or 1.27pitch. Machine can cut pin headers to different pin numbers by adjusting washers and blades.
Machine specification:
Name
Pin header Cutter
Pin header pitch
2.54mm, 2.0mm, 1.27mm. Note: Different pitch needs different machines
Size
LxWxH: 20x14x14CM Hand shake: 25.4mm
Weight
9KG
Material
Washer: 304 stainless steel, Other parts: iron with plating
User guide:
Operator can adjust blade and washers to adjust different pin numbers cutting.

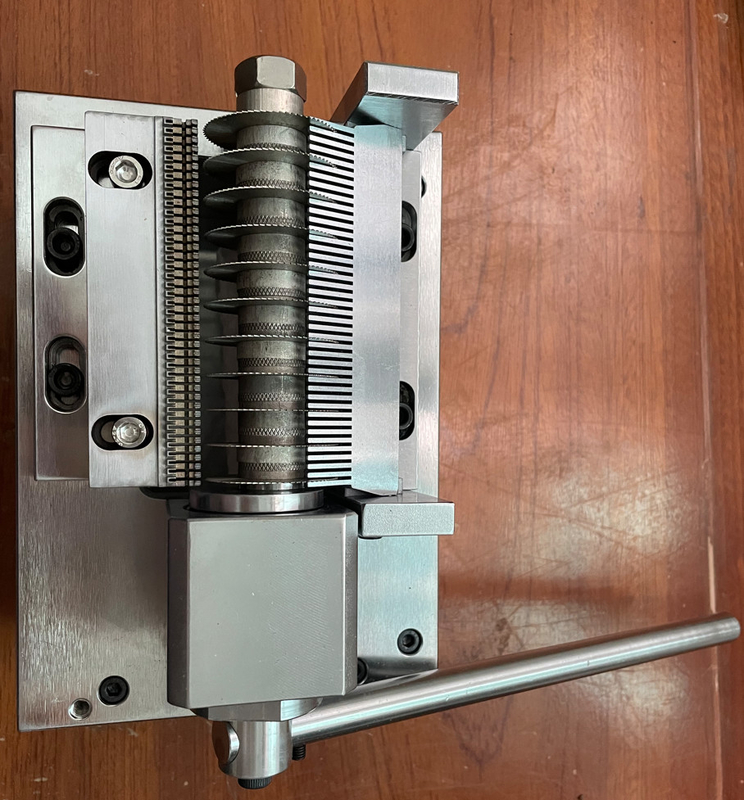

See picture below.
Explain:
Blade is 0.3mm thick, there are three types thickness washers: 1.7mm, 2.0mm and4.0mm
If you want to cut 2.0mm pin headers to 1P. Just install (1pc 1.7 wash+ 1pc 0.3 blade)+ (1pc 1.7 wash+ 1pc 0.3 blade)…..
