Fast Speed Automatic Rotary Knife Tube Cutting Machine
  • Fast Speed Automatic Rotary Knife Tube Cutting Machine

Fast Speed Automatic Rotary Knife Tube Cutting Machine

Place of Origin China
Brand Name RKENS
Model Number RS-360XQJ
Product Details
Name:
Automatic Rotary Knife Tube Cutting Machine
Knife:
Round Rotary Blade
Product Description

Fast Speed Automatic Rotary Knife Tube Cutting Machine



Intro:

This machine is used to cut tubes and other materials. It adobts belt feeding and rotary knife for cutting, can avoid pressing on materials. The cutting length and quanity can be set with keyboard buttons.



Specifications:



Model RS-360XQJ
Voltage 220V/110V, 50Hz/60Hz
Power 800W
Blade 300mm
Cut length 0.1mm-----9999.9mm
Weight 80KG
Size L760*W500*H1100mm
Display LCD in English & Chinese



Features:

1. High speed double motors conveyor belts feeding, free switch from automatic and manual operation.

2. Adjustable cutting speed up to 180 cuts/min (cut length=30mm).

3. One-touch language switch between English and Chinese on LCD display.

4. High-power motor feeding and micro-computer system control guarantee accuracy to 0.2mm.

5. Multiple rows can be cut same time. Cutting length and cutting speed are continuously adjustable.

6. Batch pause and delay time can be set.

7. High precision cutting and feeding with high speed stepper motor and micro-computer control.

8. Large LCD display screen makes operation easy.

9. Precise mechanical structure and special thin blade guarantee neat and smooth cutting.

10. Suitable to cut various kinds of tubing, such as insulation pipe, foam tube, soft hoses, PE foam, fiber pipe, fiber bar, etc.

Machine customization and modification are available to meet customer’s requirements.

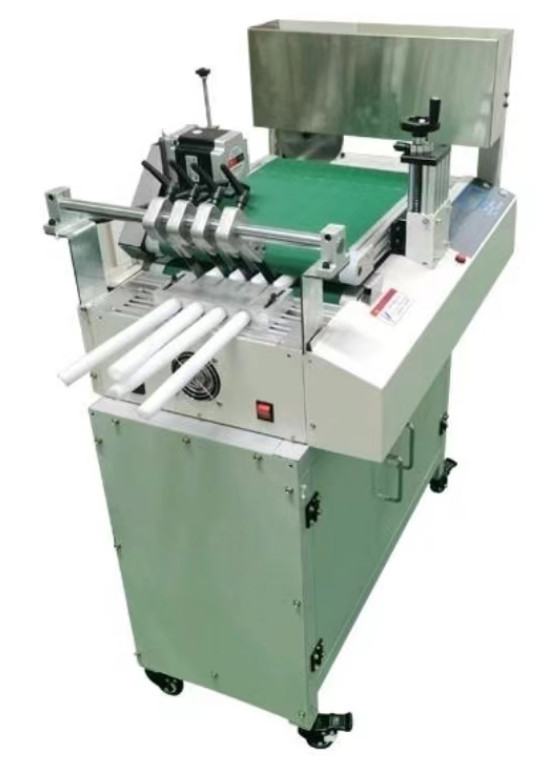

Machine pictures

Fast Speed Automatic Rotary Knife Tube Cutting Machine 0

Fast Speed Automatic Rotary Knife Tube Cutting Machine 1
