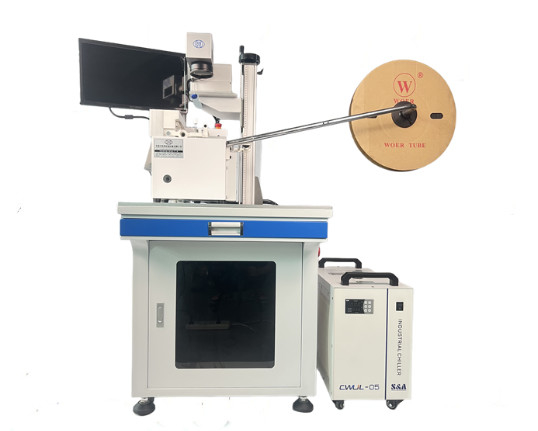

Automatic Tube Cutting And Laser Marking Machine
Specification:
| Name |
RS-100JB Automatic tube cutting and laser marking machine |
| Cut length |
0-9999mm |
| Cut width |
1-90mm |
| Available cut height |
20mm |
| Power |
350W |
| Blade material |
DC53 |
| Cut motor |
AC220V, 120W,12.5K |
| Feed motor |
Stepper motor 8680 |
Features:
1. Chinese/English LCD display, advanced electronic control, easy to operate;
2. Complete industrial-grade protection circuit design to ensure trouble-free operation for more than 20,000 hours;
3. It has complete data protection function for the set data, and the data can be saved permanently;
4. The material can be advanced and unloaded manually, and the knife can also be manually cut;
5. You can set the feeding speed, length, number of cuts, completed output, number of pieces, pause time for the number of pieces, etc.;
6. The system has output statistics and number prompt functions after winding;
7. Cutter: AC motor AC220V0.6A90W, 1350 rpm 1:12.5 box, pneumatic cutter (AC220V air valve or DC24V air valve);
8. Feeding stepper motor: 85 or 86 steps; (400 pulses per week); fast speed and high accuracy.
UV laser coding machine specifcation
| Model |
Unit |
JH-03 |
JH-05 |
| Marking para |
Marking size |
mm |
110*110/175*175/200*200/300*300/420*420 optional |
| Working distance |
mm |
160/220/254/330/420/515 |
| Marking speed |
Mm/s |
7000 |
7000 |
| Mark mini characters |
mm |
0.2 |
| Mark mini line width |
mm |
0.02 |
| Laser feature |
Laser type/ wavelength |
nm |
UV laser/355nm |
| Output power |
W |
3 |
5 |
| Power stability |
rms |
<+-1% |
| Light quantity |
|
<1.5 |
| pulse repetition frequency |
KHz |
1-1000 |
| Laser safety level |
|
Claser IV |
| Other features |
System protection level |
|
IP54 |
| Cooling method |
|
Water cooling |
| Operating environment |
°C |
15-30 |
| Power requirements |
|
220V+-5%/50HZ/10A |
| Machine power consumption |
KW |
<1.5 |
| Machine size |
mm |
650*800*1500 |
marking samples
