YS-L401-2F Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder Feeding System
  • YS-L401-2F Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder Feeding System

YS-L401-2F Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder Feeding System

Place of Origin China
Brand Name RKENS
Model Number YS-L401-2F
Product Details
Name:
Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder
Suitable:
For Headless Screws
Usage:
For Screw Feeding And Locking
Language:
English
Product Description

Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl



Intro:

YS-L401-2F is a 3-axis automaitc screw feeding driving machine. Automatic screwdriver machine puts the automatic screw feeding mechanism together with the electric screwdriver in order to achieve the complement of screw transmission and lock, which can greatly improve the production efficiency and save manpower.

Automatic screw locking machine is mainly composed of screw automatic conveying system, X-Y-Z movement platform, control system and locking system. The work efficiency is much higher than the traditional manual work, machine can operate continuously, especially for multiple same size items.



Suitable:

Set screws without head. This series screwdriver machine is suitable for M1~M8 screws, mainly applicable for electronic industry, socket, switch, LED, valve, toy, automobile, household appliances, 3C industry,furniture etc.



Parameters:

Model YS-L401-2F
Working Size 200(x)*400(Y)*100(Z) * 2 Working table
Voltage 220V/110V, 50/60HZ
Power 360W
Efficiency 3-5 second/workpiece
Import method of screw Air-blowing type
Capacity of screw pocket 8000 pcs
Customize Yes
Scope of application M1 - M6
Suitable screw head Any universal type
Size(L*W*H) 98x84x83CM
Weight 90kg



Features:

1,High efficiency, vibration feeder bowl send sends the screw to the batch nozzle, saving the time of taking the screw back and forth, and the efficiency is higher and more stable

2. XYZ aisx, can be programmable. Working route can be programmed and saved.

3. Simple operation. The display screen can be operated visually, and the staff can quickly grasp the operation and debugging. One
worker can manage several machines at the same time

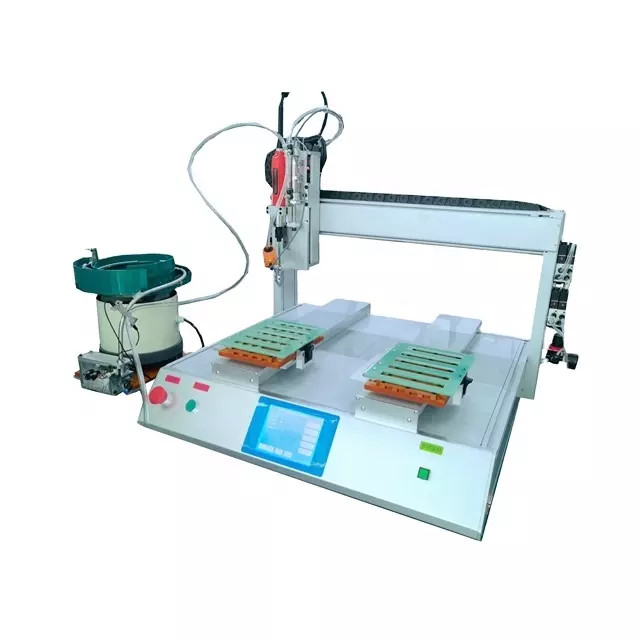

Machine pictures



YS-L401-2F Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder Feeding System 0



Detail of vibration feeder bowl

YS-L401-2F Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder Feeding System 1

YS-L401-2F Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder Feeding System 2



Other similar machines



YS-L401-2F Automatic Screw Locking Machine With Screw Vibratory Bowl Feeder Feeding System 3
