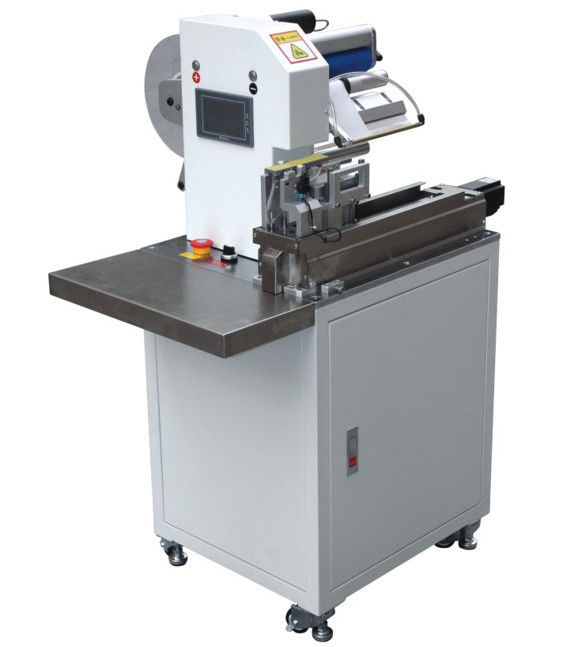

RS-250 Automatic wire folding labeling machine (servo type)

Name: RS-250 Automatic wire folding labeling machine (servo type)
Brand: RKENS TECHNOLOGY CO.,LTD
SKU: RS-250
Availability: InStock

Product Details

Product Description

RS-250 automatic wire folding labeling machine (servo type)

Productivity: 1200pcs/H or more depends on the manual operation speed

Features: 1. The latest improved machine, common for round wire and flat wire

2. Novel appearance, stable operation

3. Accurate and fast labeling

Weight: 90kg

New version Servo motor machine

Technical parameters:

The following are the technical parameters of the standard model. Other special requirements and functions can be customized.

Model	RS-250 New version Servo motor labeling machine
Power	220V/110V 50Hz/60HZ
Labeling shape	label folded in half
Applicable labels	various self-adhesive labels with Glassine backing paper
Applicable wire	1.5-5mm 5-8mm, (these two ranges require the replacement of fixtures) Customized beyond the range, round wire, flat wire, round tube, flat tube are all available.
Efficiency	1200pcs/H (depending on the label size and manual operation speed)
Labeling accuracy	±0.5mm
Applicable label size	length: max 110mm. width: 10-50mm Can be customized.
Label roller size	ID: 76mm. OD: Max 240mm Note: To use printer, the label ID:38mm, OD: Max 150mm
Machine size	7604201080mm
Weight	90kg
Working air pressure	0.5～0.7 Mpa

RS-250 Automatic wire folding labeling machine (servo type) 0

RS-250 Automatic wire folding labeling machine (servo type) 1

Machine video:

RS-250 Automatic wire folding labeling machine (servo type)
