Two Screwdriver Screw Feeding And Driving Machine With Two Working Tables
  • Two Screwdriver Screw Feeding And Driving Machine With Two Working Tables

Two Screwdriver Screw Feeding And Driving Machine With Two Working Tables

Place of Origin China
Brand Name RKENS
Model Number YS-L402-2
Product Details
Product Description

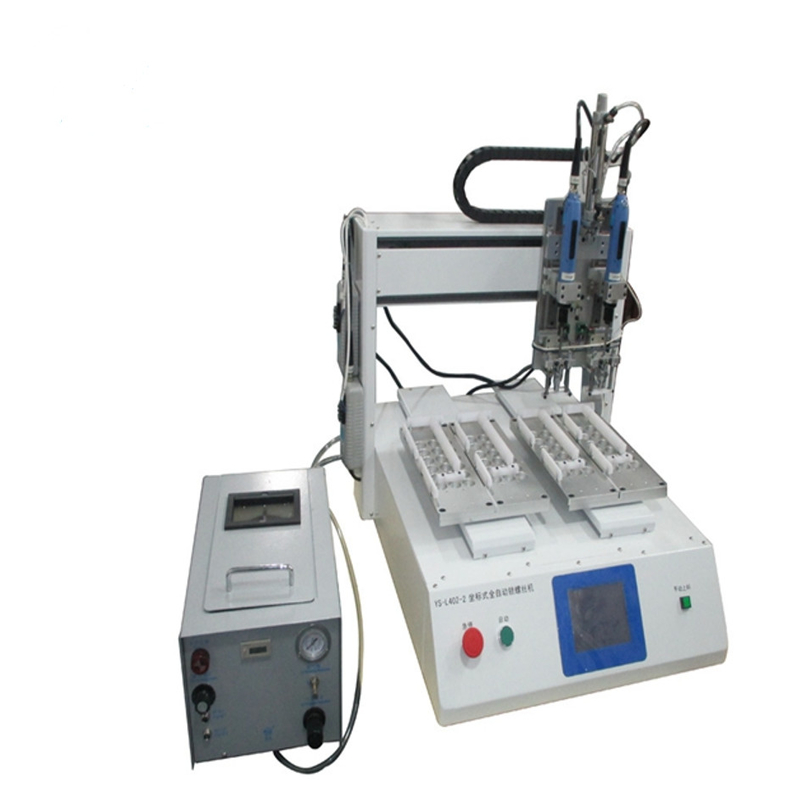

Two Screwdriver Screw Feeding And Driving Machine



Two screwdrivers, two working table. Fast speed and high efficiency.



Intro:

The three-axis automatic locking screw machine, the worker puts the product into the adjustable positioning jig. After pressing the start button, the machine automatically locks the screw. After the screw lock is completed, the operator removes the locked product. Then put in a new product. Manually put the product into the positioning jig of the machine, press the start button, the machine automatically locks the screw, removes the lock and pays the product and puts in the new product, recycling.



Specification:

Model YS-L402-2
Applicable screws M1-M6 screw length within 50mm
Screw lead-in type Air blowing
Screw pocket volume 8000pcs
Speed 3-5sec/pcs
Working area 400*400*100 can be customized
Suittable screw head Slotted, Phillips, Triangle, Six-Lobe, Hexagon, H-type, etc
Input 220V/110v 50/60HZ
Power 360W
Machine size L780*W670*H680mm
Warranty 1 year for unit machine,3 years for mainboard
Certification CE
Weight 70kg



Features:

1,With double-station automatic alternate operation, the machine can work continuously. When the workpiece on one of the worktables is locked, it can be loaded on another worktable, which is safe, convenient, fast and efficient.



2,Double-head work at the same time, paying two screws at a time, the efficiency is doubled.



3,The blown screw is directly delivered to the batch nozzle, eliminating the need to take the screw back and forth, which is more efficient and more stable.



4,The operation is simple, the display screen is visualized, the staff quickly grasps the operation and debugging, and one worker can manage several machines at the same time.



5,Improve product quality, accurate torque, easy adjustment, quality assurance.



6,Stable performance, leak detection function, reduce error rate, increase pass rate.

Two Screwdriver Screw Feeding And Driving Machine With Two Working Tables 0
