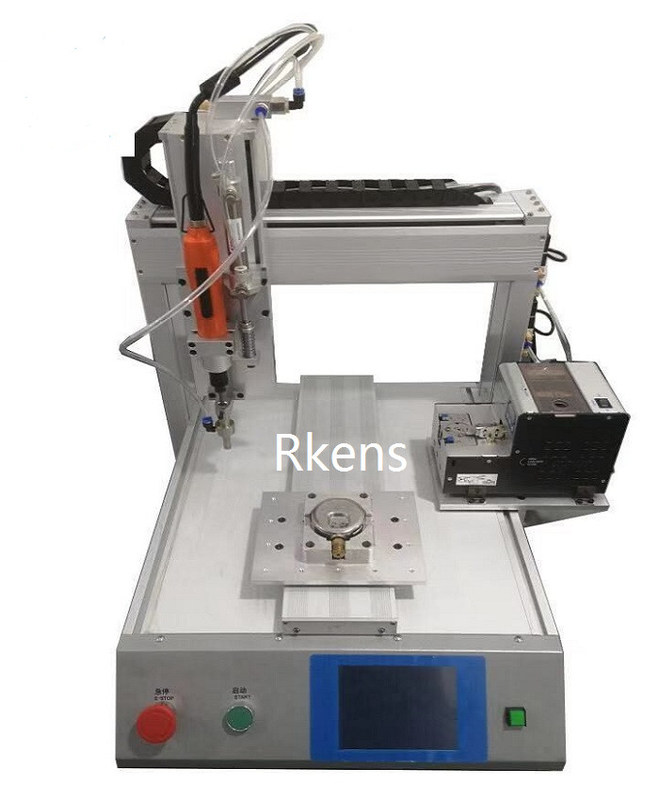

Automatic Screw Feeder And Screw Driving System, Screwdriver with Auto feeder
Intro:
Automatic screw dispenser feeding screws and screw fastening machine is designed to various screws and products. The screw present screws one by one, and screwdriver will pick up screws and fasten screws.
Easy feed and fasten screws for screw assembly. The screw dispenser can feed screws easily , screwdriver will pick up the screws automatically, and fasten screws to required area. Automatic machine with 3 axis, it can be programed easily. English operation language.
Specification:
| Model |
YS-L301E |
| Working Area |
300x300MM |
| Voltage |
220V/110V 50HZ/60HZ |
| Power |
360W |
| Efficiency |
3-5 second/workpiece |
| Import method of screw |
Air-blowing type |
| Capacity of screw pocket |
8000 pcs |
| Customize |
Yes |
| Scope of application |
M2 - M6 |
| Suitable screw head |
Any universal type |
| Size(L*W*H) |
670*550*610 mm |
| Weight |
60kg |
Feature:
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. High efficiency, the number of electric screwdriver of the Z axis is customizable according to customer’s requirements. Several electric screwdrivers can work at the same time.
3. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
4. Reduce the labor intensity of workers.
5. High degree of automation, easy operation which the staff can master and debug quickly. .
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. The air-blowing screw is transmitted to the month of the electric screwdriver directly .
8. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Welcome to contact us for more information about Automatic Auto-Feed Screw Driver , Screw Driver With Auto Feeding System
