|Name:||Auto Screwdriver With Feeder||Power Supply:||220V/110V 50HZ/60HZ|
Machine includes feeding system, operating platform and screwdriver.
1.The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe
2.Operating platform. Use pedal to control electric screwdriver of up and down.
3. Electric screwdriver tightens the screw into product.
User needs to put product on platform by hand. And then step on pedal. Machine will tighten screw automatically. At last, take out the finished product and put the next one by hand.
1.Screw capacity of feeding device : M2X6 5000PCS
2.Efficiency: 50-70PCS/MIN(Depends on screw length)
3. Voltage:220V 50HZ
4. Screw-feeding Speed : 0.5s/pc
5. Power: 30W
6. Air pressure: 2-3KGF/CM2
7. Weight: 35KG
8. Feeding device Size: 370*250*190MM
9. Noise: lower than 65dB
10 Conveying distance: 1-4Meters
1.Applicable screws: M1-M6.
2. Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.
3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4. Screw materials: iron, copper, stainless steel, etc.
5. Materials of products to be screwed: plastic, iron, aluminum, etc.
6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.

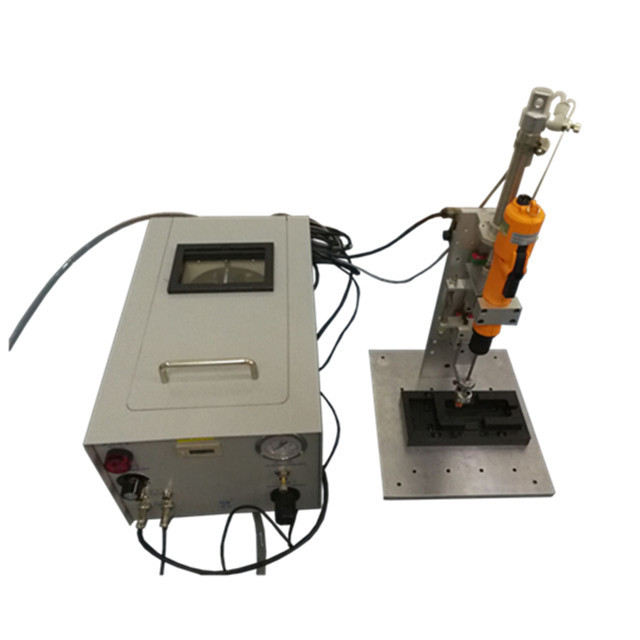

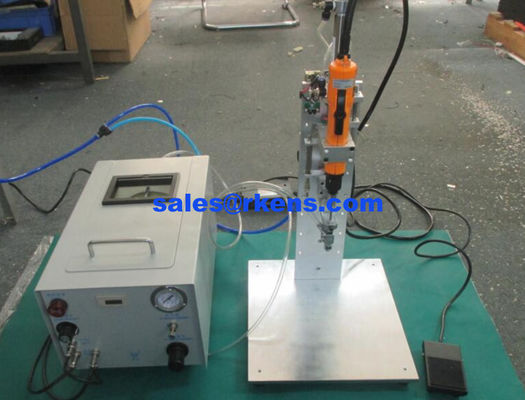

Screwdriver with feeding system machine pictures
