High Precision Circuit Board Cutting Tools 60HZ V Cut Pcb Depanelizer

China High Precision Circuit Board Cutting Tools 60HZ V Cut Pcb Depanelizer supplier
High Precision Circuit Board Cutting Tools 60HZ V Cut Pcb Depanelizer supplier

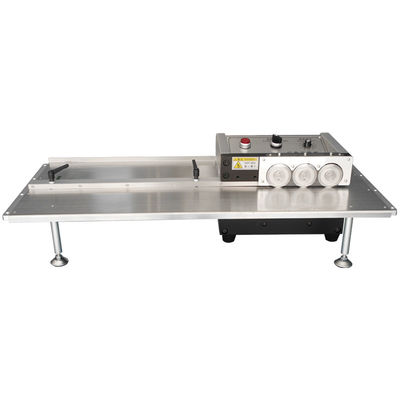

Large Image :  High Precision Circuit Board Cutting Tools 60HZ V Cut Pcb Depanelizer

Product Details:

Place of Origin: China
Brand Name: RKENS
Certification: CE
Model Number: RS-720

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden Case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 300SETs Per Month
Contact Now
Detailed Product Description
Name: V Cut Aluminum Pcb Cutting Machine, Pcb Cutter Usage: Cut V Cut Aluminum PCB Board
PCB Length: Any Length Platform: 2400MM Or 1200MM
Voltage: 110V /220V

Multi-Blade PCB Depeneler , PCB Depaneling Machine For Aluminum LED PCB



Intro:



RS-720s a precision depaneler with 6pcs knives for smooth, burr-free separation of PCBs along the scoring groove. With 2400MM platform,the large processing table can be angled to permit processed boards to fall away The design of the pcb depaneling machine eliminates stress on the board and the components during the separation process, preventing post-breakout-related board, component and solder joint defects.





Suitable:



PCB cutting machine is Suitable for cutting unlimited length of v-cut PCB, aluminum PCB, FR4 PCB, PCBA, etc.



Specification:



Name Multi-Blade PCB Depeneler , PCB Depaneling Machine For Aluminum LED PCB
Voltage 220V/110V 50HZ/60HZ
Cutting thickness 0.5-3.0 mm
Maximum Cutting length Unlimited
Machine Size 300*230*220 mm
Weight: About 36kg
Storage temperature -20~50℃
Working temperature 10~35℃
Blade material SKD-11 high-speed steel material from Japan
Cutting Materials aluminum based board, FR-4, glass fibre board and PCB, etc.
Feeding efficiency 2.5 pcs in a minute (1200mm pcb with 10 pcs pcb boards)
Limit: the distance between the parts on board and the microgroove should be above 1mm; the side width is unlimited



Features:



1. For cutting any length v cut pcb, aluminum pcb, fiber board, FR4, LED pcb, pcba.
2. Three pair of blades can guarantee the aluminum plate without deformation and damage after cutting.
3.Due to three times cutting, cutting process is smooth and can locate v cut very well to avoid v-cut jumping out.
4.High quality blade and small cutting force ensures long life of blade.
5.Blades are calibrated by Excitation double-frequency laser interference measurement instrument, which can ensure rear and front blades cut same places of the v cut. Perfect cutting effect.
