YS-100W Automatic FiberGlass Tube Cutting Machine,Soft tubes Cutter Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Automatic FiberGlass Tube Cutting Machine | Usage: | Cut Flexible Tubes,wires,etc |
|---|---|---|---|
| Max Tube Diameter: | 13MM OD | Cut Length: | 1-9999MM |
Automatic FiberGlass Tube Cutting Machine,Soft tubes Cutter Machine
Intro:
YS-100W is an automatic tube cutting machine. It can cut various flexible tubes to required length. The cutting length can be set from 0.1-9999mm.
Usage:
Cut Various materials, such as PVC tubes, shrink tubes, rubber silicone tubes, fiberglass tubes, wires, velcro,elastic, nickel strip, PV ribbons, etc.
Features
1.Full Automatic: Automatic feeding and cutting. Set Length and QTY, machine works automatically.
2.User Friendly: English panel,Software and Manual ,easy operation.
3.Fast speed: it can cut 100-120cuts/minute(Length=50mm). Adjustable speed
4. High accuracy:Cut-length is accurate controlled by stepping motors
5.Blade type: Cold or Hot cut. Hot blade cut for nylon/polyester/braided webbing, avoid fraying.
6. Automatic stop: It stops automatically if materials run out during operation.
7. Multiple usage: Suitable for cutting soft tubes, like flexible pvc tube, rubber/silicone tube,shrink tube,etc. Also it can cut ribbon cable,copper wire,shrink sleeve, PV ribbon, Tabing Ribbon, nickel strip, Copper velcro,elastic, strap,etc.
Parameters
| Name | YS-100W Automatic FiberGlass Tube Cutting Machine,Soft tubes Cutter Machine |
| Model | YS-100W |
| Power Supply | 220V/110V 50HZ/60HZ |
| Blade length | 100MM |
| Cut length | 0.1-9999MM |
| Speed | 100-120 cuts/minute(50mm length) |
| Weight | 28KG carton box |
| Size | 56x48x53CM |
| Language | English |

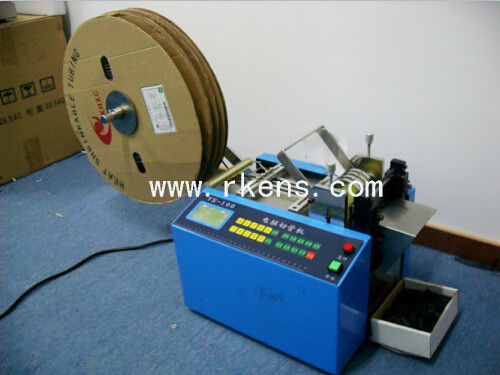

Pictures of Automatic FiberGlass Tube Cutting Machine
Questions&Answers
1. Is it an automatic machine?
Yes, it is an automatic cutting machine. You just need to set cut length and cut numbers, it will cut automatically.
2. What about the language of the panel and user manual?
The panel, munual and software will be all in English. So people around the world can use it conveniently.
3. What about the warranty?
The warranty is 3 years. We provide life-long service. Whenever you need help, just contact us.
4.What about the lead time?
We will machines in stock, we can ship the machine within 1-2 days after getting your payment.
Machine video:
