YS-160/160W PVC Sheet & Film Cutting Machine, Auto Poly Tubing Cutter Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | PVC Sheet/Film Cutting Machine, PVC Sleeve Cutter Machine | Usage: | Cut Plastic/pvc Films, Pvc Sheet,ribbon Cable, Velcro, Tubes,etc |
|---|---|---|---|
| Cut Length: | 1-9999MM | Type: | Auto Feeding And Cutting |
| Blade Length: | 160mm | Language: | English |
YS-160/160W PVC Sheet & Film Cutting Machine, PVC sleeve Cutter Machine
Usage:
Cut Various materials, such as plastic/pvc film/sheet, flat ribbon cable, PVC tubes, shrink tubes, rubber silicone tubes, fiberglass tubes, wires, velcro,elastic, nickel strip, PV ribbons, etc.
Different between YS-160 and YS-160W
YS-160: 250W
YS-160W: 500W
YS-160W has bigger motor and drive. It is more powerful.
Features
1.Full Automatic: Automatic feeding and cutting. Set Length and QTY, machine works automatically.
2.User Friendly: English panel,Software and Manual ,easy operation.
3.Fast speed: it can cut 100-120cuts/minute(Length=50mm). Adjustable speed
4. High accuracy:Cut-length is accurate controlled by stepping motors
5.Blade type: Cold or Hot cut. Hot blade cut for nylon/polyester/braided webbing, avoid fraying.
6. Automatic stop: It stops automatically if materials run out during operation.
7. Multiple usage: Suitable for cutting soft tubes, like flexible pvc tube, rubber/silicone tube,shrink tube,etc. Also it can cut ribbon cable,copper wire,shrink sleeve, PV ribbon, Tabing Ribbon, nickel strip, Copper velcro,elastic, strap,etc.
Parameters
| Name | Cut-To-Size Heavy Duty Layflat Polythene Tubing Cutting Machine |
| Model | YS-160 /YS-160W |
| Power Supply | 220V/110V 50HZ/60HZ |
| Blade length | 160MM |
| Cut length | 0.1-9999MM |
| Speed | 100-120 cuts/minute |
| Weight | 35KG Packed by carton case |
| Size | 57x43x50CM |
| Language | English |
Questions&Answers
1. Is it an automatic machine?
Yes, it is an automatic cutting machine. You just need to set cut length and cut numbers, it will cut automatically.
2. What about the language of the panel and user manual?
The panel, munual and software will be all in English. So people around the world can use it conveniently.
3. What about the warranty?
The warranty is 3 years. We provide life-long service. Whenever you need help, just contact us.
4.What about the lead time?
We will machines in stock, we can ship the machine within 1-2 days after getting your payment.

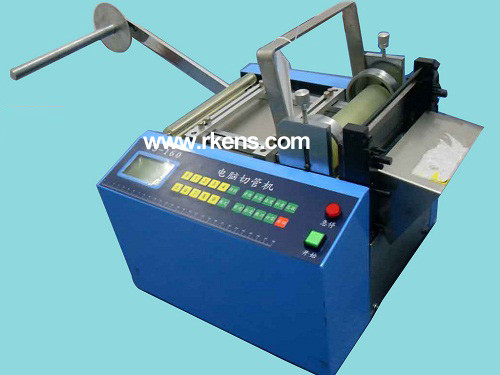

Pictures of Automatic PVC Film/Sheet/Sleeve Cutting Machine
English Panel, Operation Language and Manual For easy operation
Machine video:
