RS-1.5T/2T/3T/4T Semi-automatic Mute Wire Crimping Machine
  • RS-1.5T/2T/3T/4T Semi-automatic Mute Wire Crimping Machine
  • RS-1.5T/2T/3T/4T Semi-automatic Mute Wire Crimping Machine

RS-1.5T/2T/3T/4T Semi-automatic Mute Wire Crimping Machine

Place of Origin China
Brand Name RKENS
Model Number RS-1.5T/RS-2.0T/RS-3.0T
Product Details
Name:
Semi-automatic Wire Crimping Machine
Usage:
Terminal Crimping
Crimping Strength:
1.5Ton, 2.0Ton, 3.0Ton, 4.0Ton
Product Description

Semi-automatic Mute Wire Crimping Machine

Intro:



The RS-2.0T mute terminal crimping machine is an excellent solution for customers looking for a simple, low-cost crimping press. The wire crimping machine can deliver up to 2.2 tons (20 kN) of crimping force.This is a multi-functional wire crimp machine. One machine can work for various crimp applicators for different terminals crimping. If you have different terminals, just need to buy 1 machine, and replace the applicator. It can work for all your terminals.





Note:One machine can work with different crimp applicators, and easy to replace.

Suitable:

Side-feed tape and reel terminals, rear-feed reel terminals, single grain ferrules.

Parameters:

Model RS-1.5T mute terminal RS-2.0T mute terminal RS-3.0T mute terminal RS-4.0T mute terminal
Press capacity 1.5 ton 2.0 ton 3.0 ton 4.0 ton
Appearance size 260×300×600mm 280×320×650mm 260×320×680mm 300×380×750mm
Motor power 0.55KW 0.75KW 1.1KW 1.55KW
Power supply AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz
Stroke distance 30MM 30MM 30MM

30MM







Features:



  • Automatic high speed super mute terminal crimping machine. The machine is easy to operate and repair, which is designed for high output and low maintenance.
  • With frequency conversion technology, electronic precision positioning, noise is smaller than traditional terminal machine when it works. Power saving, convenient and easy to adjust mold
  • Can be equipped with different die/applicator. And easy to change

Note: We can customize applicator and blade according to customer's terminals.



RS-1.5T/2T/3T/4T Semi-automatic Mute Wire Crimping Machine 0

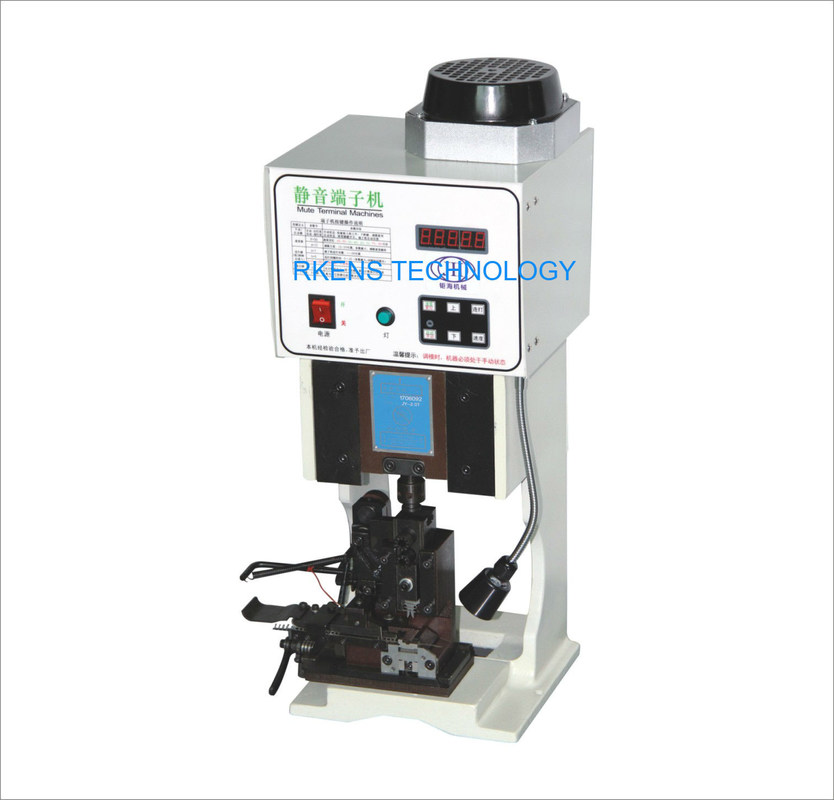

Pictures of mute wire terminal crimping machine



RS-1.5T/2T/3T/4T Semi-automatic Mute Wire Crimping Machine 1



Machine video:


RS-1.5T/2T/3T/4T Semi-automatic Mute Wire Crimping Machine 2
