Automatic Two-End crimping machine with cutting and stripping feature

China Automatic Two-End crimping machine with cutting and stripping feature supplier
Automatic Two-End crimping machine with cutting and stripping feature supplier Automatic Two-End crimping machine with cutting and stripping feature supplier

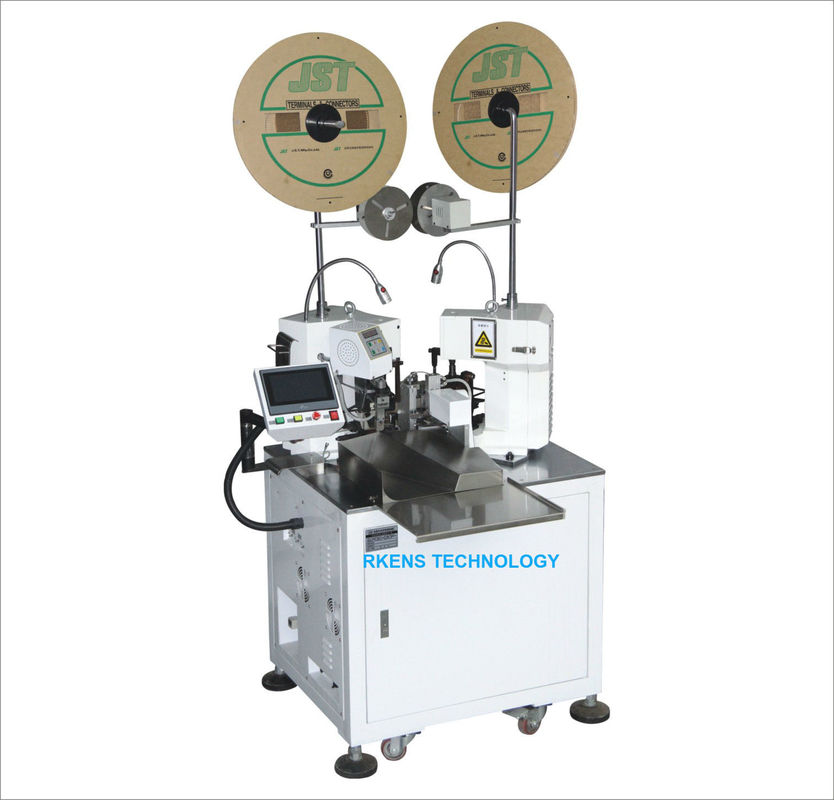

Large Image :  Automatic Two-End crimping machine with cutting and stripping feature

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-01
Contact Now
Detailed Product Description
Usage: Cut, Strip And Crimp Available Wire: AWG14 To AWG32 Wire Can Be Customized
Wire Type: Electric Wire Press Force: 2.0Ton

Automatic wire cutting, stripping and two-ends crimping machine



Youtube Video: https://youtu.be/4N6nwuqOpqw



Automatic Two-End crimping machine with cutting and stripping feature



Wire Cutting stripping and crimping machine parameters:



Model
RS-01 Fully Automatic Terminal Crimping Machine (double terminals)
Machine function
Crimping,cutting point,stripping,half stripping,detect to both ends are controlled by computer
Production capacity
1007#16-1571#28 both-ends crimping 0.9/pcs
Speed

3600pcs/h(length<=200MM)

Wire cutting length
50-9999mm
Cutting precision
Cutting length ﹤100mm,tolerance ± 0.5mm Cutting length ﹥100mm, tolerance ± 1.0mm
Stripping length

One end 0.1-9.00(half strip3.00-9.00mm)both ends (0.1-9.00mm)

Control mode
32-bit computer system
Power source
Single-phase AC220V 50/60Hz
Compressed air
0.5MPa-0.7MPa(air capacity 130MI/min-180MI/min)
Operating temperature range
Environment temperature 15°-30°
Machine size
1000W*700D*1550H(mm) thrusts are not contained
Weight
400kg





Feature:



1. Adjust the program by computer
2. Support full stripping and half-stripping
3. 7inch touch screen
4. Airtac cylinder
5. Single chip microcomputer control system
6. Taiwan Hi-win linear guider and PHT reducer
7. Keyence Omron detector
8. Support Vertical type horizonal type OTP mold
