|Name:||Accuracy SMD/SMT Components Counting Device/machine||Usage:||Count Tape&reel Smd Components|
Accuracy SMD/SMT components counting device/machine
RS-802 can detect empty components with optical fiber sensor
RS-801 can not detect empty components
1. Any size Reel SMD electronic components/chip, such as SMD capacitor, SMD resistor, etc
2. Space between two components: 2,4,8,10,12,16,24,32,44,56(mm)
3. Width of reel: 8, 12, 16, 24, 32, 44, 56mm
4. Suitable for all industries related to SMD components
Machine can operate in two different ways:
Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.
Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.
|Capability||5000 pcs /30s|
|Power consumption||30W(2 Motors)|
|Counting volume||-99999 ~ 99999pcs|
|Reel Diameter||Suitable for SMD Reel with any diameter|
|Reel Interval Distance||2,4,8,10,12,16,24,32,44,56mm|
1.Full automactic counter, high accuracy, no error.
2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.
3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.
4.The counter use drafting LCD screen, easy operation, full English display.
5.Use patent reflector,humanized operation platform.
6.Optional bar scanner and code printer, convenient for component management.
7. Optical sensor can detect empty components. Motor will stop working when detected leak.

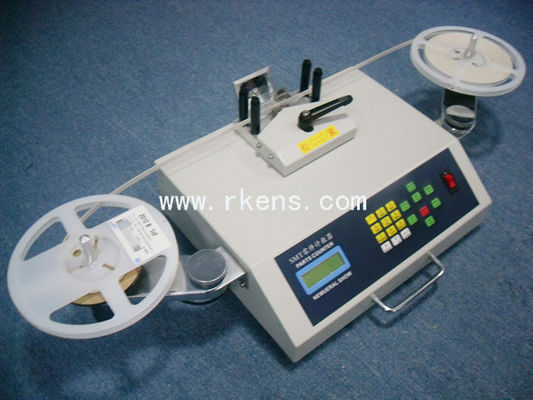

Pictures of Accuracy SMD/SMT components counting device/machine
RS-802 SMD counter with fiber sensor, can detect empty components
SMD components counter is packed by carton box with foam
Spare parts for SMD counter
Optional BarCode Printer and Scanner
