Factory SMD component counter for tape& reel components counting
  • Factory SMD component counter for tape& reel components counting
  • Factory SMD component counter for tape& reel components counting

Factory SMD component counter for tape& reel components counting

Place of Origin China
Brand Name RKENS
Certification CE
Model Number RS-802
Product Details
Name:
Factory SMD Component Counter For Tape& Reel Components Counting
Usage:
Count Tape&reel Smd Components
Type:
Automatic
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Carton box or Wooden case
Delivery Time
3-5 days
Payment Terms
T/T, Paypal,Western Union
Product Description

Factory SMD component counter for tape& reel components counting

RS-802 can detect empty components with optical fiber sensor

RS-801 can not detect empty components



Application

1. Any size Reel SMD electronic components/chip, such as SMD capacitor, SMD resistor, etc

2. Space between two components: 2,4,8,10,12,16,24,32,44,56(mm)

3. Width of reel: 8, 12, 16, 24, 32, 44, 56mm

4. Suitable for all industries related to SMD components



Machine can operate in two different ways:



Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.

Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.

Factory SMD component counter for tape& reel components counting 0



Parameters

Voltage AC110V/220V, 50/60Hz(convertible)
Capability 5000 pcs /30s
Power consumption 30W(2 Motors)
Counting volume -99999 ~ 99999pcs
Size L470*W300*H180mm
Net Weight 10kg
Reel Diameter Suitable for SMD Reel with any diameter
Reel Interval Distance 2,4,8,10,12,16,24,32,44,56mm
Reel Width 8,12,16,24,32,44,56mm



Features

1.Full automactic counter, high accuracy, no error.

2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.

3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.

4.The counter use drafting LCD screen, easy operation, full English display.

5.Use patent reflector,humanized operation platform.

6.Optional bar scanner and code printer, convenient for component management.

7. Optical sensor can detect empty components. Motor will stop working when detected leak.



Pictures of Factory SMD component counter for tape& reel components counting

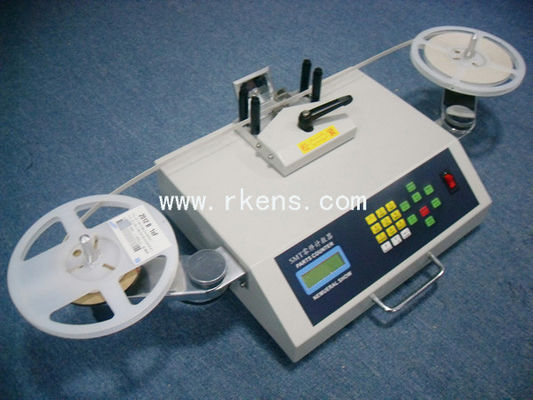

SMD chip counter



RS-802 SMD counter  with fiber sensor, can detect empty components

Factory SMD component counter for tape& reel components counting 2



SMD components counter is packed by carton box with foam

smd counter



Spare parts for SMD counter

Factory SMD component counter for tape& reel components counting 4



Optional BarCode Printer and Scanner

Factory SMD component counter for tape& reel components counting 5

Welcome to count more about our Factory SMD component counter for tape& reel components counting

Factory SMD component counter for tape& reel components counting 6
