|Name:||Cut And Bend Axial Tape&loose Resistor/diode Lead Machine||Usage:||Cut And Bend Axial Lead|
|Suitable:||Tape And Loose Axial Resistor/diode||Lead Size:||0.35-0.8mm|
|Functions:||Cut, Cut&bend, Bend|
full automatic resistor lead cutter and bender which can handle both loose radial components and taped components, rotary disc blade is easy to replace and places minimal mechanical stress or axial tension on the component.
If you are interested in the machine, please write email and tell the following:
1. What components do you use? Resistor, diode or other components ?
2. Components are in tape or loose/bulk?
3. Components lead size?
4. Provide a picture to show how you bend the lead?
Then we can select a suitable machine for you.
Cut and bend resistor/diode lead samples
1. This machine is suitable for axial tape or loose resistors and electronic components forming and cutting feet;
2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;
3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;
4. Forming span and feet length are adjustable;
5. Using tools imported from Japan, durable;
6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.

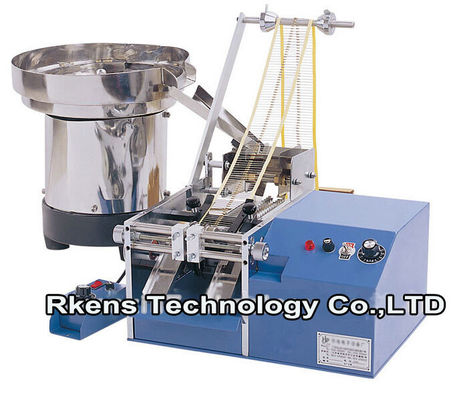

Name: Tape and loose resistor cutting and forming machine U&F shape
Size:L560 x W500 x H380mm
Weight:125KG after packing
For loose axial components, it can automaic feed components with the feeder bowl.
For taped axial components, you can put tape packed components on the holder
Radial Lead Cutter and Former for taped components only
Detailed showcase about our blades for cutting and bending resistor/diode
Showcase for cutting and bending samples
Welcome to contact for more about Tape and loose resistor cutting and forming machine U&F shape
