Motorized Type PCB V Cut Machine , V Scored PCB Separating Machine 220V/110V
  • Motorized Type PCB V Cut Machine , V Scored PCB Separating Machine 220V/110V

Motorized Type PCB V Cut Machine , V Scored PCB Separating Machine 220V/110V

Place of Origin China
Brand Name RKENS
Model Number YS-805A
Product Details
Name:
V-groove PCB Cutting Machine, Pcb Cutter Machine
Type:
Automatic Pcb Cutting Machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Wooden Case
Delivery Time
3-5 days
Payment Terms
T/T, Western Union, Paypal
Supply Ability
300SETs Per Month
Product Description

V Cut PCB Depanelizer , V-scored PCB Separating Machine, PCB Cutting

Intro:

V Cut PCB Depanelizer can separate PC and LED boards cleanly, without stressing the boards, circuits, or components. PCB v cut and straight knfe pcb d is a motorized depaneling machine for V-scored PCB. It is very easy to operate. Operator just need to put PCB V-cut on the lower linear blade, then press foot switch, uppder blade will moves from one side to another side to separate the PCB.

Suitable:

V Cut PCB Depanelizer , V-scored PCB Separating Machine, PCB Cutting

It can cut v-cut pcb board to units. Suitable for pcb, aluminum pcb, fiber panel.

Available PCB thickness: from 0.2mm to 3.2 mm

Available V-cut thickness: from 0.2mm to 2.0mm

Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.



Parameter



Model YS-805AV Cut PCB Depanelizer , V-scored PCB Separating Machine, PCB Cutting
Cutting Length 0-400mm(For longer pcb, contact me)
Outer dimension L740xW550XH460mm
PCb length

Different models for different length of pcb cutting



Electric Load AC220V 50Hz & AC110V/60HZ
Electric Power 250W
Suitabe for V-Groove PCB Board/Aluminum PCB
Package Wooden Case
Weight

Approx.60KG





Features:



1. The nether linear blade is used to fix the PCB V-cut, the upper circular blade moves to separate the PCB. By pressing the foot-pedal to control upper circular blade.

2. Adopt step motor, can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm, 600mm, 900mm, 1200mm is optional)

4. The stroke of the upper circular blade can preset. (Setting rang: Between any two groups of 0,100, 200,300,400mm)

5. Blade moving speed can switch between 300mm/s and 500mm/s.

6. The gap between two blades is easy to adjust

7. Operation is very safe, the circular blade is covered by material, avoid the blade hurting hand. Also can install a sensor, when hand or foreign matter enters into the working area, it will stop immediately.

8. Blade material is SKH7 from Sweden, long lifetime. During cutting, it can effectively decrease cutting stress to avoid welding spot cracking.





V Cut PCB Depanelizer , V-scored PCB Separating Machine, PCB Cutting will be packed by wooden case





Welcome to contact us fore more information about V Cut PCB Depanelizer , V-scored PCB Separating Machine, PCB Cutting



Working principle

Fix the v-cut of the pcb on the lower blade, and the upper circular blade moves to cut the pcb. Clear cut, no damage to PCB.

Pictures of v cut High Quality PCB Cutter/Cutting Machine

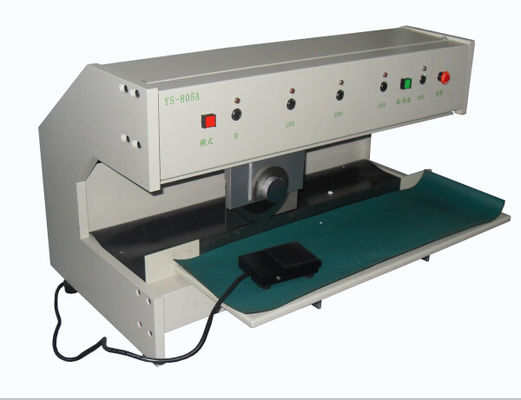

Motorized Type PCB V Cut Machine , V Scored PCB Separating Machine 220V/110V 0



Blade Moving To Separate/Cut PCBS



Motorized Type PCB V Cut Machine , V Scored PCB Separating Machine 220V/110V 1



pcb depanelizer is packed by wooden case

Motorized Type PCB V Cut Machine , V Scored PCB Separating Machine 220V/110V 2



Welcome to contact for more about our V-groove PCB cutting machine, pcb cutter machine

Motorized Type PCB V Cut Machine , V Scored PCB Separating Machine 220V/110V 3



Questions&Answer

1.What is the working principle for the pcb depaneling machine?

There are two blades for machine: Lower linear blade and upper circular blade. Put V cut of the pcb on lower linear blade, upper circular blade moves to separate pcbs.



2. What types of pcb can it separate?

Machine can only separate PCBs with v cut.



3. How long pcbs can it cut?

According to your pcb length, we have different machines for you. Such as YS-805A for pcbs less than 400MM length. YS-805B for pcbs less than 600mm length. JX-F300 for unlimited length of pcbs.



4.What is the voltage?

Machine is for 110V or 220V voltage. According to your country, we will convert voltage for you.



5. How to pack it?

Machine is packed by exported wooden case.



6. What is the warranty?

Warranty is 1 year.
