|Name:||V-scored PCB Separtor Machine, PCB Board Separator Machine||Suitable For:||Max 400MM V Cut Pcbs|
|Type:||Automatic Pcb Cutting Machine|
For pcbs with v-cut
pcb thickness: 0.2-3.2mm
v-cut thickness: 0.2-2.0mm
We will select a machine according to your pcb length.
YS-805A for pcbs less than 400MM length
YS-805B for pcbs less than 600MM length
RS-700 for unlimited length of pcbs.
1, Controlled by microcomputer program, it can cut board accurately with no error.
2, Adjustable blade moving speed: 300mm/s or 500mm/s. As per customers' need, certain speed can be set.
3, Upper blade can be adjustable between 0 and 2mm to meet different thickness of PCB and V-cut.
4, Operation platform can be adjustable higher and lower between 0 and 50mm.
5, As per your pcb length, we have different models for you. So any length pcb is available.
6. Available board thickness: 0-3.2mm, V-groove thickness:0-2mm
7. Pre-set the cutting start and end point to well control the cutting length.
8. The blades are sharp and endurable. And they can be sharpened between 7 and 10 times.
9. Minimize the shearing stress to avoid micro-cracks of the solder joints
|Cutting Length||0-400mm(For longer pcb, contact me)|
Different models for different length of pcb cutting
|Electric Load||AC220V 50Hz & AC110V/60HZ|
|Suitabe for||V-Groove PCB Board/Aluminum PCB|

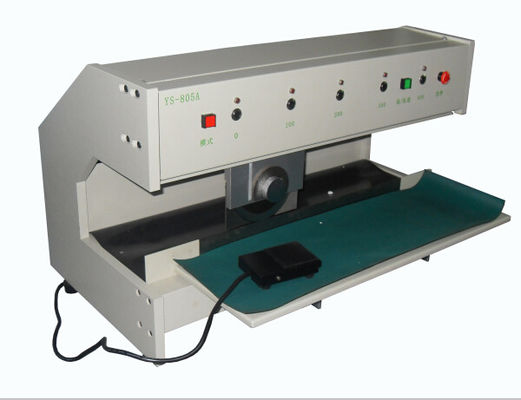

Pictures of v cut High Quality PCB Cutter/Cutting Machine
Blade Moving To Separate/Cut PCBS
pcb depanelizer is packed by wooden case
Welcome to contact for more about our pcb depaneler, pcb depanelizer
