High quality printing ink glue dispensing equipment for car logo

China High quality  printing ink glue dispensing equipment for car logo supplier

Large Image :  High quality printing ink glue dispensing equipment for car logo

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-D331-X

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden case
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 300 SETS per month
Detailed Product Description
Name: High Quality Printing Ink Glue Dispensing Equipment For Car Logo

High quality printing ink glue dispensing equipment for car logo

Robot glue dispenser is used for glue dispensing for various product. With accurate robot program, controller and pumping system, it can effectively dispense glue without waste.



Available glue:

UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...



Applicable objects:

For dispensing various glues on Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

High quality  printing ink glue dispensing equipment for car logo



Features

  • Full Automatic, English. Easy operation
  • Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
  • Adjustable gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
  • Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
  • Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be customized according to the product size.
  • Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...



Technical Parameters

Model YS-D331-X YS-D441-X YS-D551-X
Working area(X/Y/Zmm) 300x300x60 400x400x60 500x500x60
Max. Speed 500mm/sec
Resolution 0.01mm
Repeatability +/-0.01mm
Display 5.7’ LCD
Drive mode Micro Stepping Motor
Power 220V /110V
Working enviroment

Temperature:5-40 degrees Celsius

Humidity:20-90%RH

Size(L*W*H) 460x450x480mm 560x550x500 660x650x550
Weight 70KG 80KG 90KG

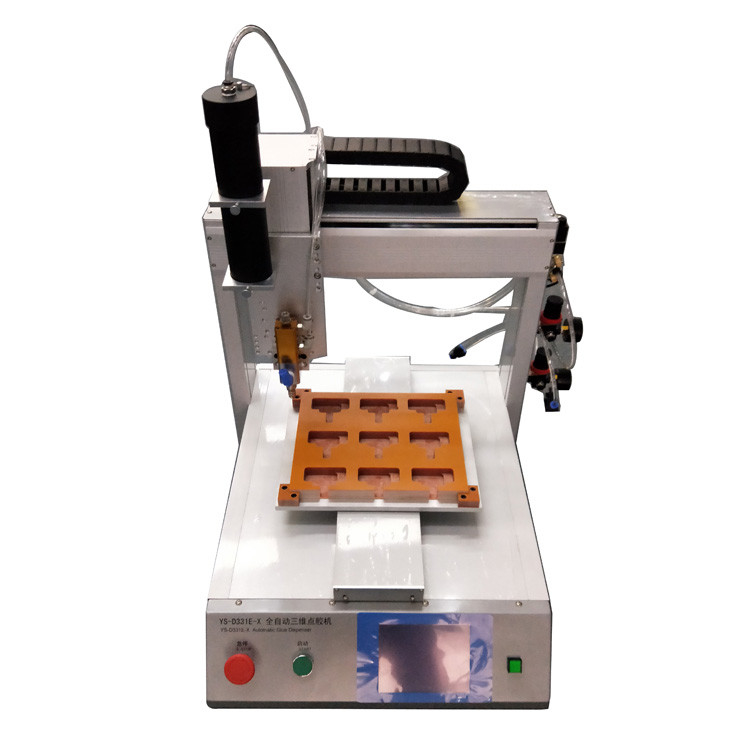

Pictures of Robot glue dispenser, automatic glue dispensing machine

High quality  printing ink glue dispensing equipment for car logo



High quality  printing ink glue dispensing equipment for car logo



High quality  printing ink glue dispensing equipment for car logo



Glue dispenser is packed by wooden case

High quality  printing ink glue dispensing equipment for car logo



Welcome to contact for more about our Robot glue dispenser, automatic glue dispensing machine

High quality  printing ink glue dispensing equipment for car logo
