Motorized PCB depaneler, separate pre-scored PCBs China manufacturer

We got the automatic cutting machine. It is good packed and the quality looks perfect. The most important thing is that it can cut our poly tubes well.

—— Matthew Eschbach

Sally, Thanks for your attention. The counter can count our labels accurately and fast. We will recommend it to our customers surely.

—— Roger

Hi Sally. We are very happy to be your customers. The stripper machine can strip our hook-up wires very well.

—— Ruben

Hello Sally, We receive your LED cutting machine, It looks nice. Thanks in advance

—— Michael May

Hello Sally, We received the machine on Wednesday.We tried it and it works very well. I hope my customer will like it too. Thanks for the business

—— Laszlo Puskar

I'm Online Chat Now

Motorized PCB depaneler, separate pre-scored PCBs China manufacturer

China Motorized PCB depaneler, separate pre-scored PCBs China manufacturer supplier
Motorized PCB depaneler, separate pre-scored PCBs China manufacturer supplier Motorized PCB depaneler, separate pre-scored PCBs China manufacturer supplier

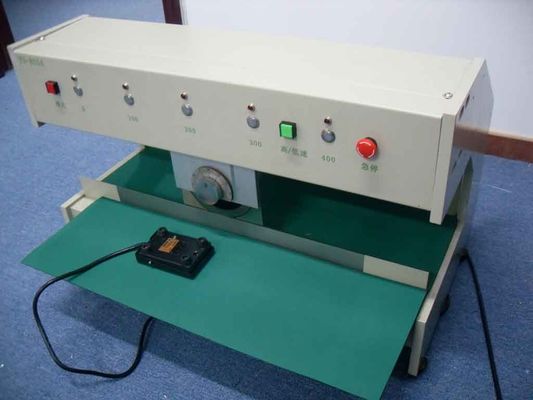

Large Image :  Motorized PCB depaneler, separate pre-scored PCBs China manufacturer

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: YS-805A

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden Case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 300SETs Per Month
Contact Now
Detailed Product Description
Name: Motorized PCB Depaneler, Separate Pre-scored PCBs China Manufacturer Type: Automatic Pcb Cutting Machine
Suitable PCB: V-grooved Pcbs PCB Thickness: 0.2-3.2MM
V Cut Thickness: 0.2-2.0MM

Motorized PCB depaneler, separate pre-scored PCBs China manufacturer

Application of PCB depaneler

For pcbs with v-cut

pcb thickness: 0.2-3.2mm

v-cut thickness: 0.2-2.0mm



We will select a machine according to your pcb length.

YS-805A for pcbs less than 400MM length

YS-805B for pcbs less than 600MM length

RS-700 for unlimited length of pcbs.



Features of PCB depanelizer

1, Controlled by microcomputer program, it can cut board accurately with no error.

2, Adjustable blade moving speed: 300mm/s or 500mm/s. As per customers' need, certain speed can be set.

3, Upper blade can be adjustable between 0 and 2mm to meet different thickness of PCB and V-cut.

4, Operation platform can be adjustable higher and lower between 0 and 50mm.

5, As per your pcb length, we have different models for you. So any length pcb is available.

6. Available board thickness: 0-3.2mm, V-groove thickness:0-2mm

7. Pre-set the cutting start and end point to well control the cutting length.

8. The blades are sharp and endurable. And they can be sharpened between 7 and 10 times.

9. Minimize the shearing stress to avoid micro-cracks of the solder joints



Parameters



Model YS-805A
Cutting Length 0-400mm(For longer pcb, contact me)
Outer dimension L740xW550XH460mm
PCb length

Different models for different length of pcb cutting



Electric Load AC220V 50Hz & AC110V/60HZ
Electric Power 250W
Suitabe for V-Groove PCB Board/Aluminum PCB
Package Wooden Case
Weight

Approx.60KG






Working principle

Fix the v-cut of the pcb on the lower blade, and the upper circular blade moves to cut the pcb. Clear cut, no damage to PCB.



Pictures of Motorized PCB depaneler for separating pre-scored PCBs

Motorized PCB depaneler, separate pre-scored PCBs China manufacturer



Blade Moving To Separate/Cut PCBS



Motorized PCB depaneler, separate pre-scored PCBs China manufacturer



pcb depanelizer is packed by wooden case

Motorized PCB depaneler, separate pre-scored PCBs China manufacturer



Welcome to contact for more about our Motorized PCB depaneler for separating pre-scored PCBs

Motorized PCB depaneler, separate pre-scored PCBs China manufacturer



Questions&Answer

1.What is the working principle for the pcb depaneling machine?

There are two blades for machine: Lower linear blade and upper circular blade. Put V cut of the pcb on lower linear blade, upper circular blade moves to separate pcbs.



2. What types of pcb can it separate?

Machine can only separate PCBs with v cut.



3. How long pcbs can it cut?

According to your pcb length, we have different machines for you. Such as YS-805A for pcbs less than 400MM length. YS-805B for pcbs less than 600mm length. JX-F300 for unlimited length of pcbs.



4.What is the voltage?

Machine is for 110V or 220V voltage. According to your country, we will convert voltage for you.



5. How to pack it?

Machine is packed by exported wooden case.



6. What is the warranty?

Warranty is 1 year.
