RS-70P Max 70 Sqmm Cable Cutting And Stripping Machine -For Max 22MM OD Cables
  • RS-70P Max 70 Sqmm Cable Cutting And Stripping Machine -For Max 22MM OD Cables

RS-70P Max 70 Sqmm Cable Cutting And Stripping Machine -For Max 22MM OD Cables

Place of Origin China
Brand Name RKENS
Model Number RS-70P
Product Details
Name:
Big Cable Cutting And Stripping Machine
Suitable For:
Cables Within 22MM(70 Sqmm)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
carton box or wooden case
Delivery Time
5-7 days
Payment Terms
T/T
Product Description

RS-70P Belt Type Cable Stripping Cutting Machine For Max 70 Sqmm

Intro:



RS-70P is Belt feeding type micro-computer type wire cutting and stripping machine. With belt, there will be no pressing marks on cable.

Parameters can be set by pressing buttons. LCD will show all parameters. Operator can set cut length, quantity, front and rear strip length, etc.

8 Wheels roller driving mode, for big cables

  • English language display
  • 220V/110V 50HZ/60HZ power supply
  • For 6-22MM OD power cable,PVC,etc
  • Belt feeding, no pressing marks on cable



Suitable:



1. Fast speed and multi-functional wire cutting and stripping machine

2.Suitable for round muti-core cable within 22MM OD. Or electric wire within 70 sqmm.

3. Cut only, or cut and strip at same time.

4. Programmable for setting parameters. Easy operation.



Specification:

Model RS-70 Cable Cutting Stripping Machine RS-70P Cable Cutting Stripping Machine
Power Supply 220V/110V 50HZ/60HZ 220V/110V 50HZ/60HZ
Function Cut wire, strip one end, strip both ends Cut wire, strip one end, strip both ends
Available wire Suitable for electric wire, or multi-core cables
Cut length 0.1-99999.9MM 0.1-99999.9MM
Strip length Front end 1-200MM, rear end 0.1-90MM Front end:1-250mm, rear: 1-150mm
Cable size 6-70sqmm 6-70sqmm
Cutter control Stepping Motor Servo Motor
Drive Mode Eight-wheel independent drive Eight-wheel independent drive
Function Auto wire in, auto wire out, timing start Auto wire in, auto wire out, timing start
Speed 1000-1500pcs/H 1000-1500pcs/H
Weight 105KG 105KG
Size L900xH350XW530MM L1030xH330xW530MM











































Feature:



1. This machine is mainly aimed at the wires of the automobile industry, sensor industry, power industry, photovoltaic industry, electric control cabinet and battery box. The whole coil of wire can be stripped at the required length and peeled at both ends and the middle peeling automatically without hurting. The wire feeding accuracy of the sheath and the conductor and the belt greatly improves the efficiency;

2. This machine supports a variety of working modes, such as long wire, short wire, sheathed wire and multi-segment leather. One machine can meet the requirements of multiple wires;

3. Display mode: touch screen display interface, which can be switched between Chinese and English;

4. This machine adopts PLC control system to send pulses to improve the precision of cutting line; 5. Operation mode: semi-automatic manual operation of length measurement and cutting of multi-layer residual Skin, leftover skin in the middle, easy to operate

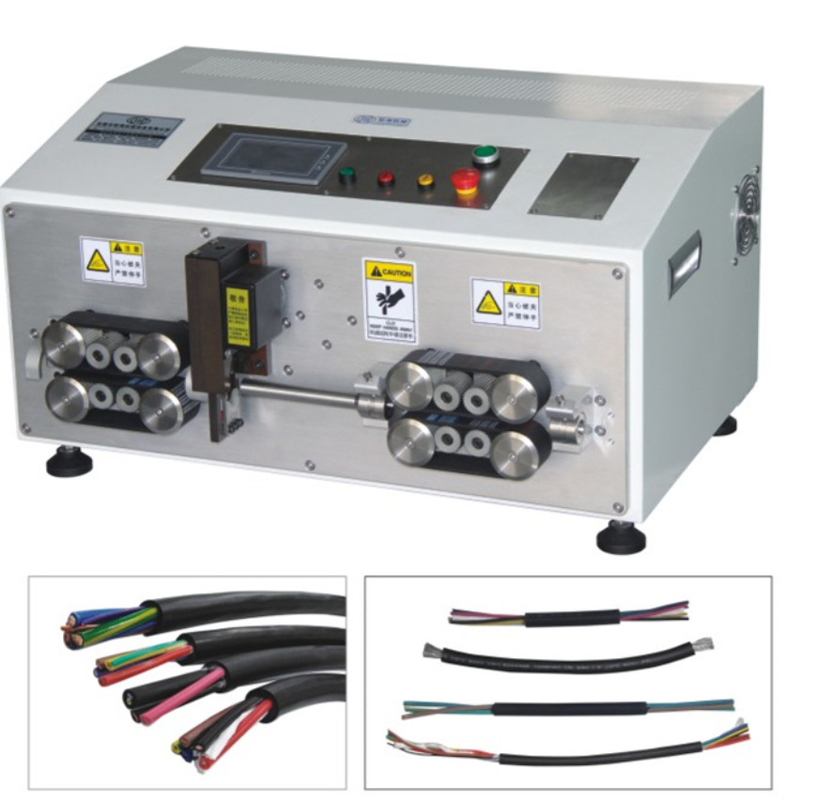

RS-70P Max 70 Sqmm Cable Cutting And Stripping Machine -For Max 22MM OD Cables 0
